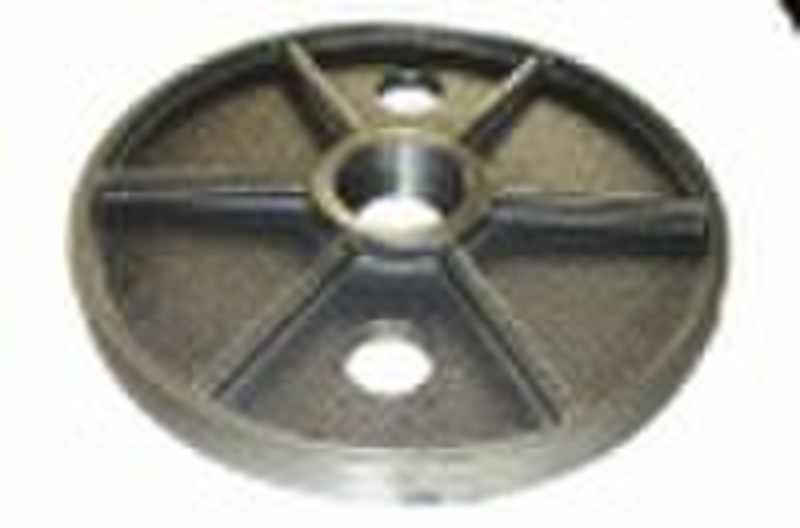

Round Plate casting

Round Plate casting Material: ASTM A536 Class 65-45-12 or Class 60-40-18 Weight: 10.5kg Process: make the clay green sand with sand roller mill;make the mould with Z145 mould machine;smelting and pouring with electric furnace; analyse chemical composition with spectral device; observe and record the graphite structure and economy organization with metalloscope; inspect the mechanical property with tensile strength tester; clean with cylinder shot blasting machine; heat treatment with electric furnace; brush oil on the part surface or do other antirust treatment. Service: At the project developing stage, we will do the job according to the PPAP procedure(fourth edition) which is specified by autocar department of ASQC(American Society for Quality Control),AIAG,Kreisler motors company and Ford general motors company,and supply the PPAP report to customers (including flow chart of process,FMEA, all dimensiones inspection report,test result of material property,measure system analysis, regular lab documents control plan, PSW and samples). At the production stage, we will provide the service of order production management and quality control for the customer per ISO9001:2008 Quality Control System standard. At the delivery and shipment stage, we will do the Pre-shipment Quality Evaluation per the special Class S-4, ANSI/ASQC Z1.4-1996 Quality Inspection standard, or do the quality inspection evaluation according to the customer's requirements, and issue the evaluation report to the customers Packing: We will pack the parts with VCI antirust bag and pack with plywood case. Also we can pack according to the customer's requirements.
